Homemade tiltplate



I had to come up with a solution to install my new antennas in my tilting mast as easily as possible.

I found a system on YouTube that deserved my attention, namely a tiltplate.

After some preliminary research I started building them.

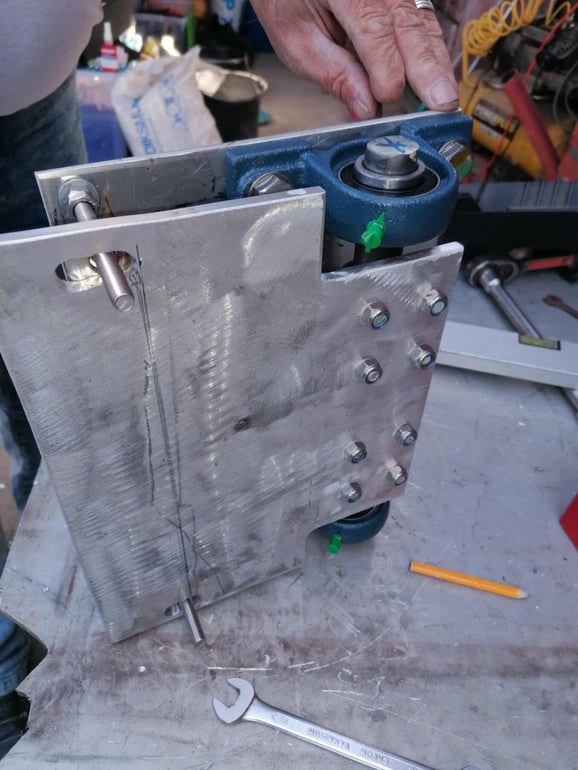

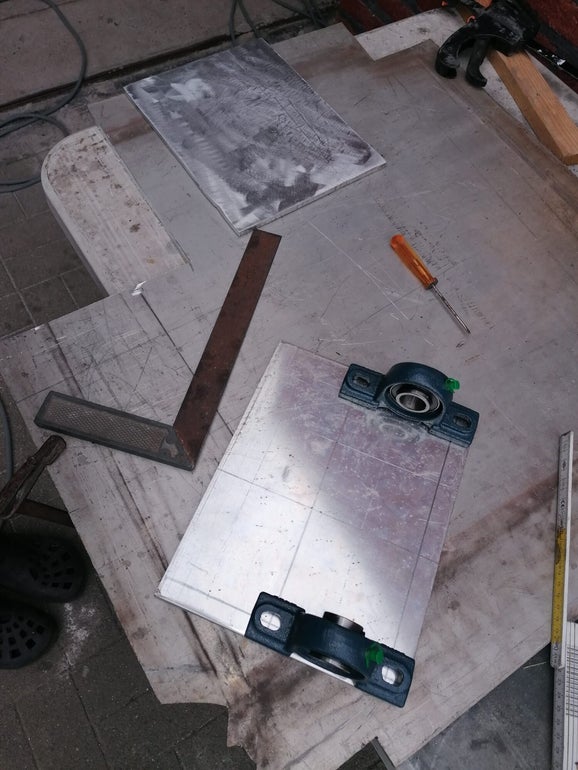

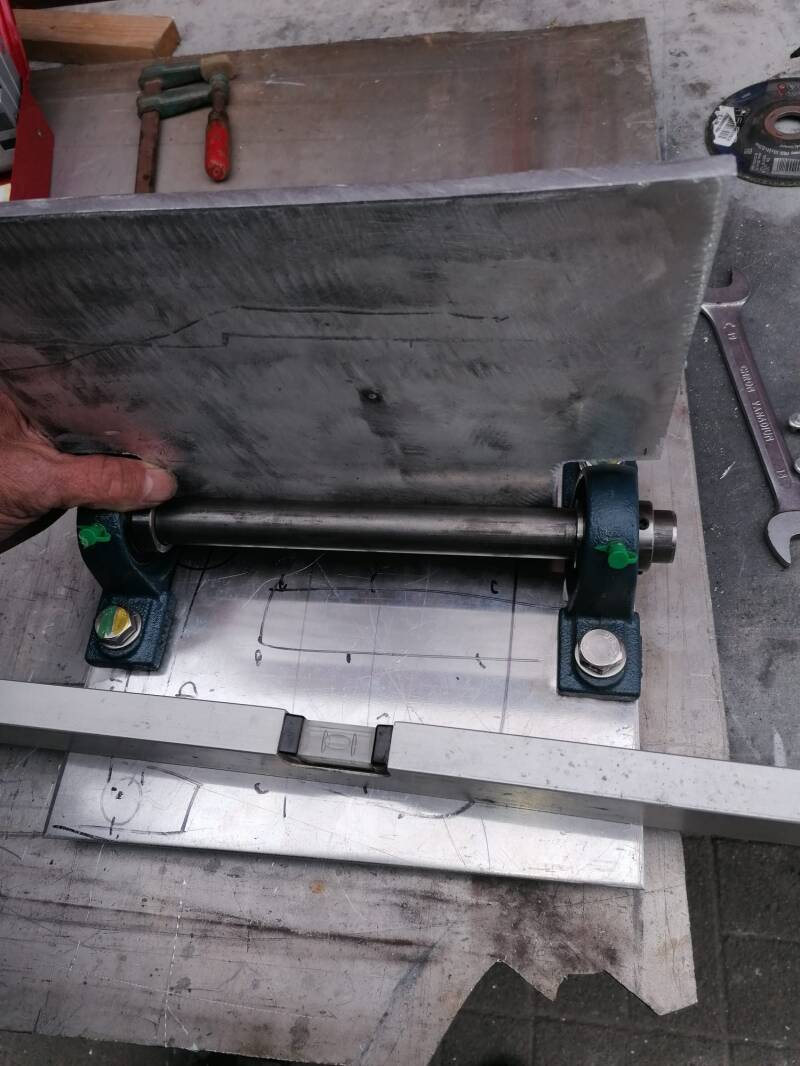

Aluminum plate is 7mm thick

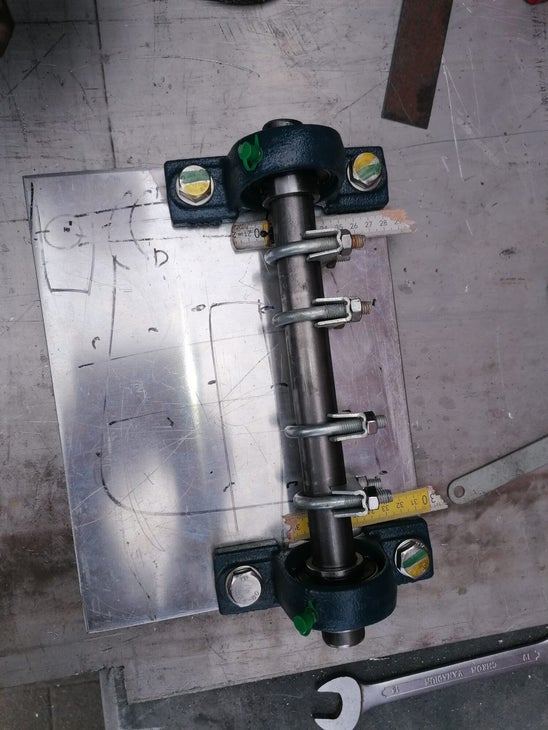

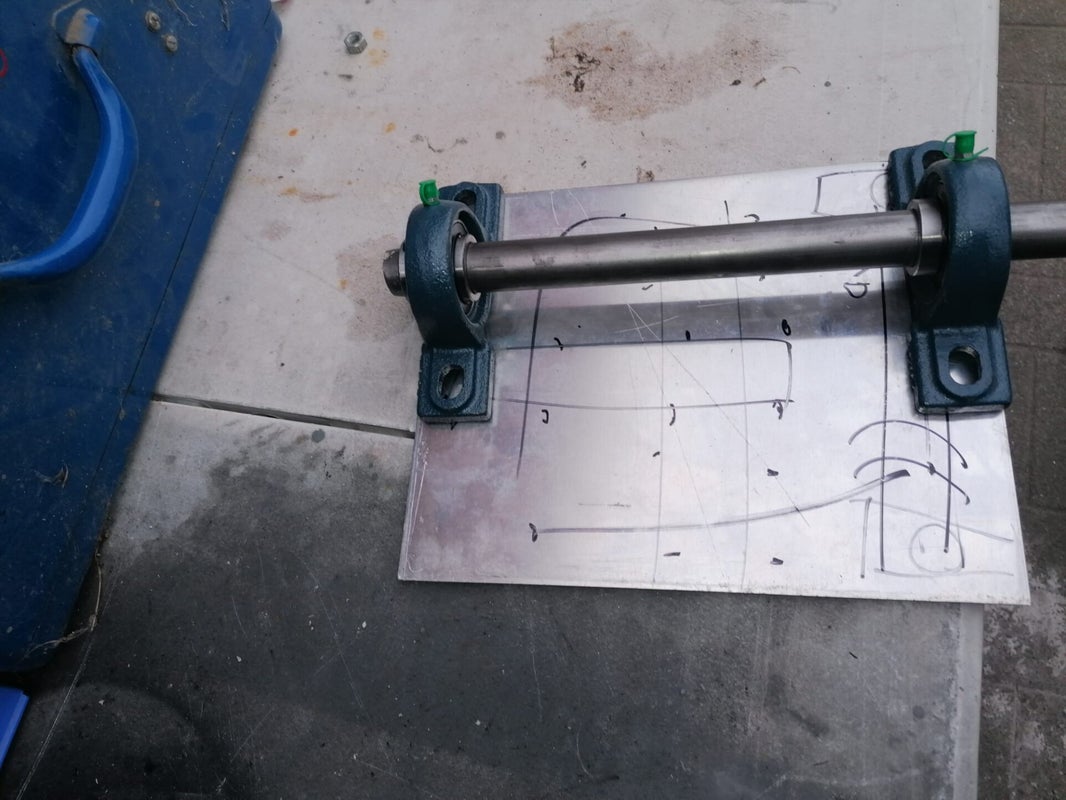

The bearings are the cheapest I could find.

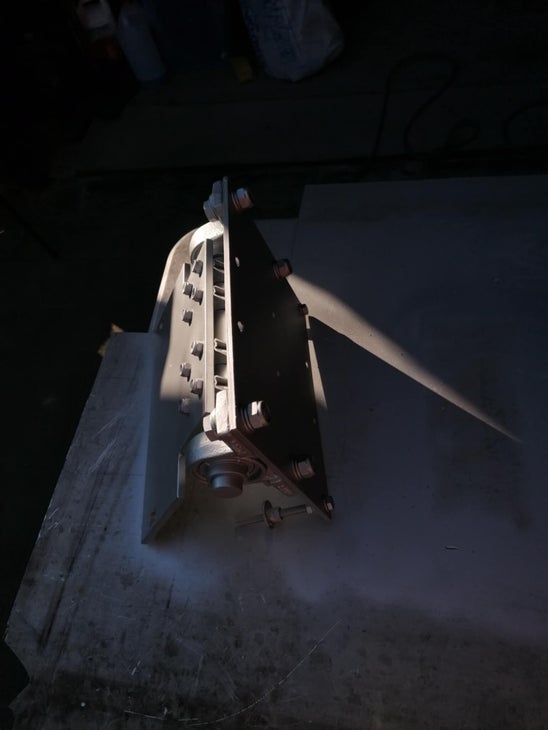

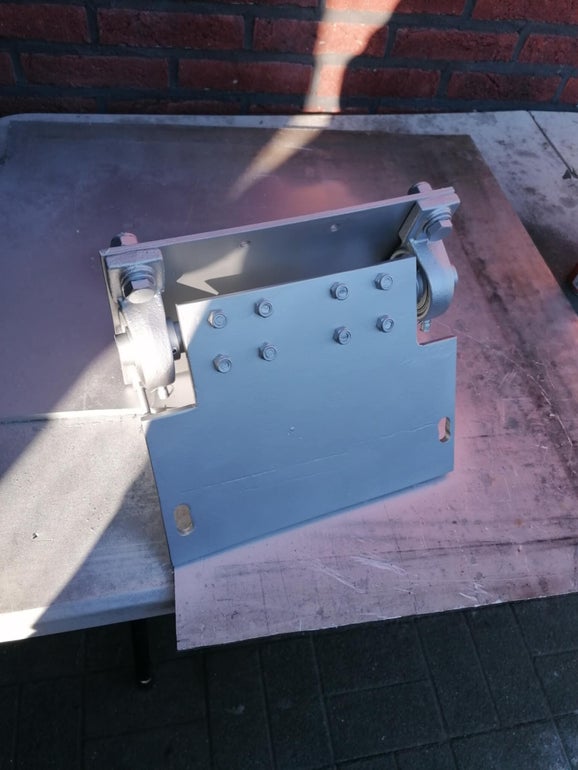

It took me a day to make this, but I think the end result is a success.

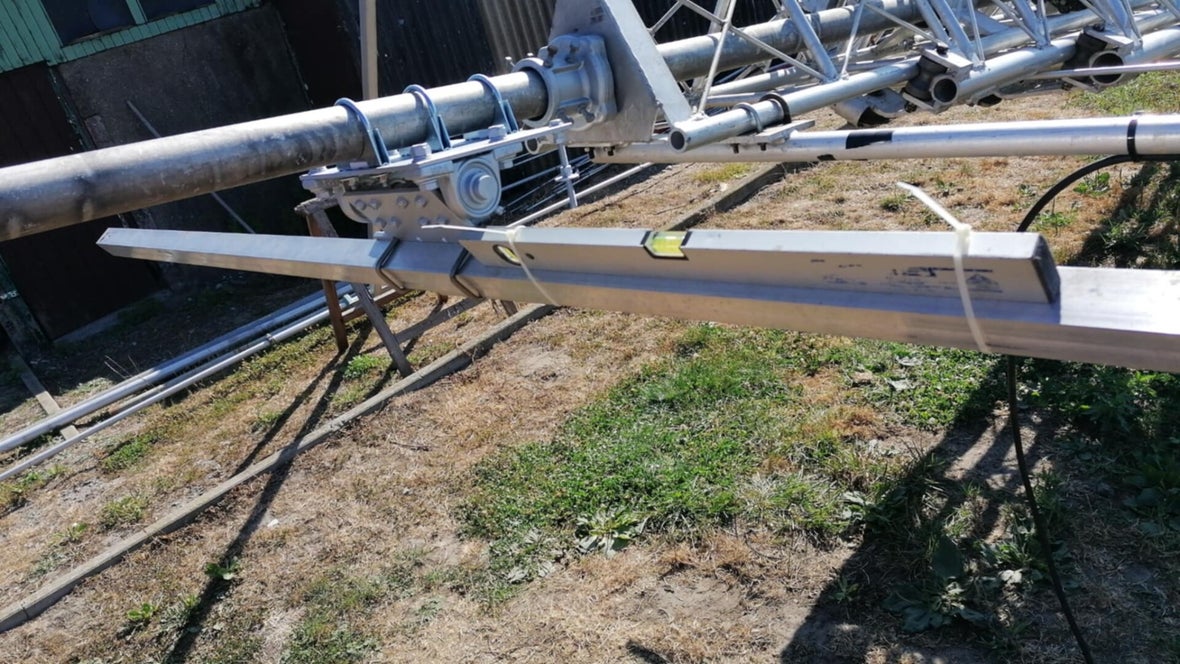

The only thing left to do is leveling the mast.
But I'm going to get an extra electric winch to tilt the mast much more easily, allowing me to fine-tune everything much more accurately.
