Controller in the shack

09/06/2020

The controller in the shack still needs an enclosure.

Led light not implemented at this time till I find an good enclosure.

To look nice in the Shack, on the enclosure I will try to make a world map with Belgium in the Middle.

On the site of NS6T (https://ns6t.net/azimuth/) you will find the ability to make your own map.

15/06/2020



First test on the enclosure, doesn’t look that bad.

16/06/2020



Plasticized the paper and drilled some holes for the LED’s.

I implement an on/off switch and on/off for the preamp.



A fuse in the box, you never know what can happen.



Quick test of all led’s are working, I did not order them on mouser because I had them in stock.

 It’s some old stock from my dad ON2OPA (SK) and after finishing I noticed that unfortunately not all LED’s having the same brightness. I’m guessing my dad have mixed  them.

It will not affect the working of the array but I will eventually replace them.

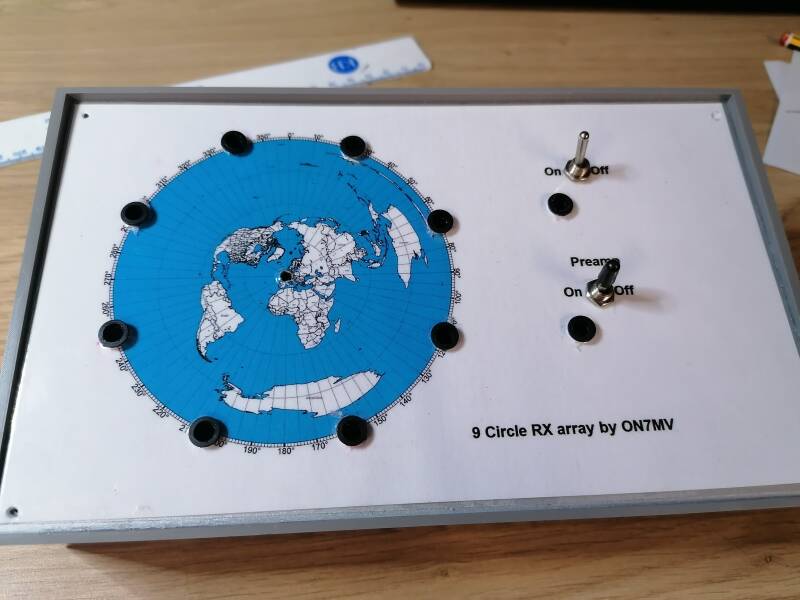

Finished controller

Is it all perfect, no it’s not let’s call it a prototype J .

As you can see I used a different setup of the beaming’s I don’t use north and south.

Connector type I used I a DB15 (got many of them in stock).



Normally this page is done so no more update from the controller, except if I made a new one.
