04/06/2020

The first parts arrived from Mouser and like expected very good and easy to recognize the part, all bags have a description and every part has his own bag.



Not all the parts are in stock, the ferrite will be delivered somewhere next month.

08/06/2020

The pcb’s arrived, good and solid package.











10 pcb’s antenna amps (1 spare)

2 pcb’s controller (1 spare)

2 pcb’s  phase board (1 spare)

2 pcb’s switch (1 spare)



10/06/2020

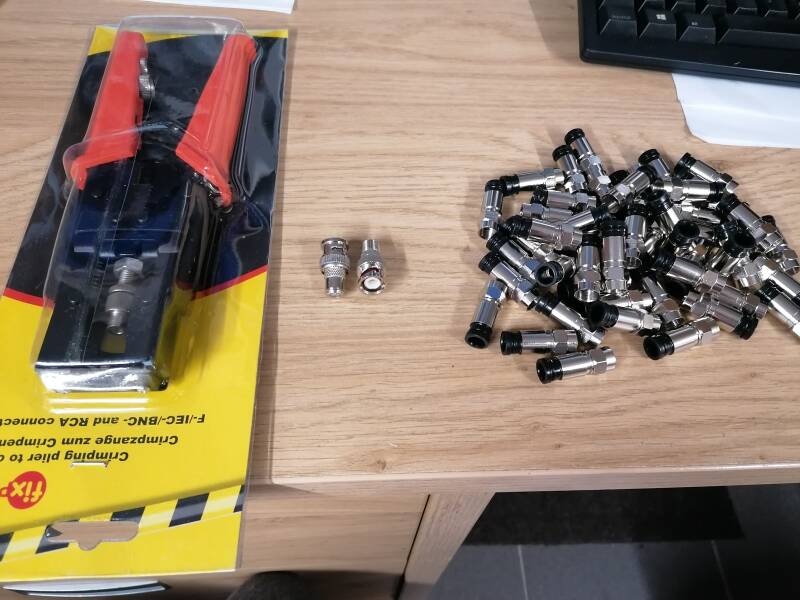

The crimping tool, F connectors  and the needed adapter are arrived.

More info on this part of the build on the subpage "coax and delay lines"

15/06/2020

Enclosures are arrived so we can made the control unit.

Some more ordered than I needed but I will make myself a new one for the 80m triangle as well.



16/06/2020











Enclosures arrived for the 9x RX amp.

Yes there are10 of them but building one spare.















The coax RG179 also arrived

09/08/2020



Finally,

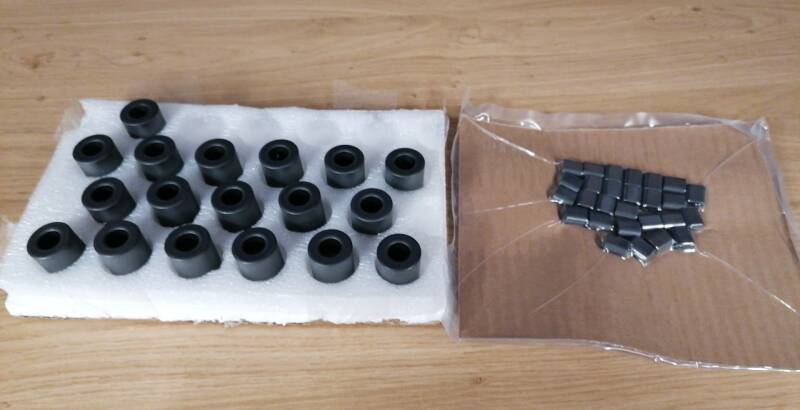

The Fair-rite and the magnet wire arrived after almost two months after ordering.

All parts are at my house  except for the antenna’s.
